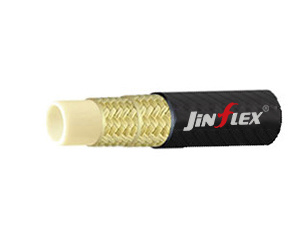

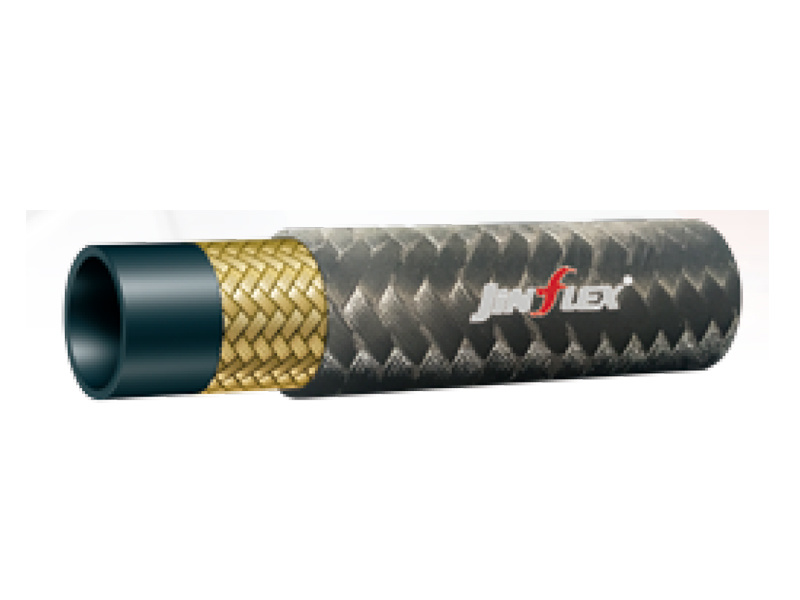

SAE 100 R3
To deliver low pressure petroleum and water based hydraulic fluids such as mineral oil, glycol, lubricating oil, emulsion, hydricarbon.
- Product Description
-
Hose Construction:
Inner tube: oil resistant synthetic rubber
Reinforcement: two high tensile fiber braids
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +100℃
Applications:
To deliver low pressure petroleum and water based hydraulic fluids such as mineral oil, glycol, lubricating oil, emulsion, hydricarbon.
I.D
T.D.
O. D
W.P.
Test Pressure
B.P.
Min.B.R.
Weight
inch
mm
mm
mm
psi
bar
bar
bar
mm
kg/m
3/16
4.5 - 5.4
6.5- 9
11.9 - 13.5
1493.5
103
207
41.4
70
0.14
1/4
6.1 - 7.0
6.5 -9.1
13.5 - 15.1
1247
86
172
345
76
0.18
5/16
7.6 - 8.5
8.2 - 10.7
16.7 - 18.3
1203.5
83
165
331
102
0.25
3/8
9.2- 10.1
8.2 - 10.6
18.3 - 19.8
1131
78
155
310
102
0..27
1/2
12.4-13.5
9.5 -12.2
23.0 - 24.6
1000.5
69
137
276
127
0.39
5/8
15.6-16.7
9.5 - 12.2
26.2 - 27.8
870
60
121
241
140
0.55
3/4
18.7-19.8
11.2 - 13.8
31.0 - 32.5
754
52
103
207
152
0.67
1
25.1-26.2
11.8 - 13.1
36.9 - 39.3
565.5
39
78
155
203
0.81
1-1/4
31.4-32.9
11.5 - 13.1
42.9 - 46.0
377
26
52
103
254
0.92
Previous:
Next:
GET A FREE QUOTE
If you are interested in our products, please leave your e-mail, we will contact you as soon as possible, thank you!
Related Products
Related Products
Electronic samples
-
ENGLISH&CHINESE-Jinflex catalogue
Sincerely willing to provide high quality products to clients all over the world, with brand-new visage, powerful strength, solid technology and thoughtful service. Welcome to visit us!
-
Electronic samples
Sincerely willing to provide high quality products to clients all over the world, with brand-new visage, powerful strength, solid technology and thoughtful service. Welcome to visit us!
ENGLISH&CHINESE-Jinflex catalogue
Electronic samples

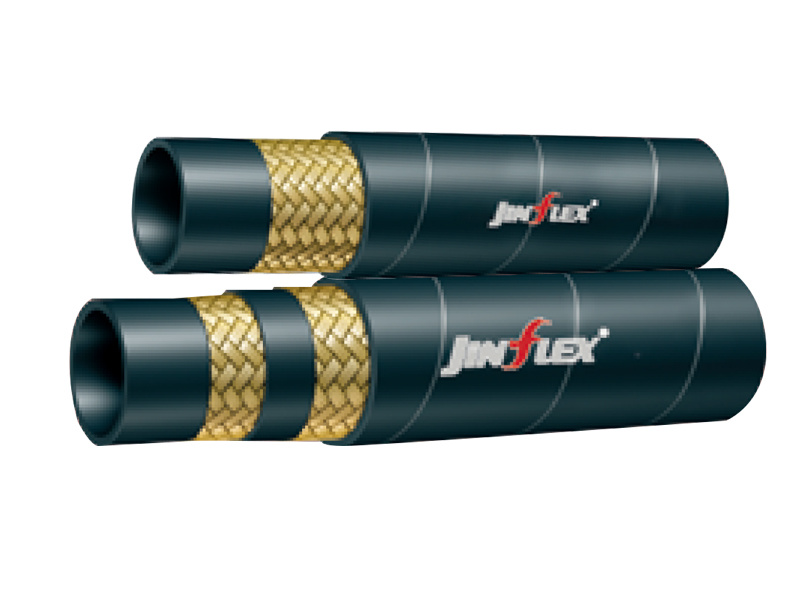

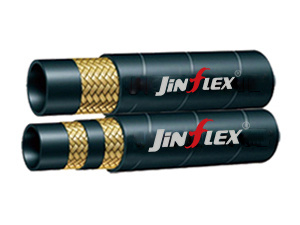

Wire Braided Hydraulic Hose
-

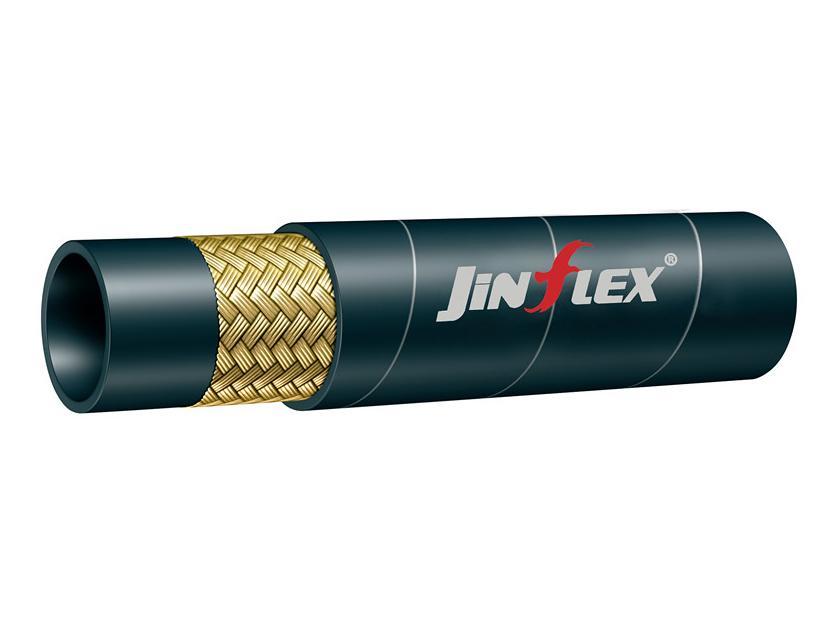

SAE 100R1AT
Medium pressure hydraulic application including mobile, machine tool and agricutural application, using petroleum or water based hydraulic fluids.
-
DIN EN853 1SN
Medium pressure hydraulic application including mobile, machine tool and agricutural application, using petroleum or water based hydraulic fluids.
-

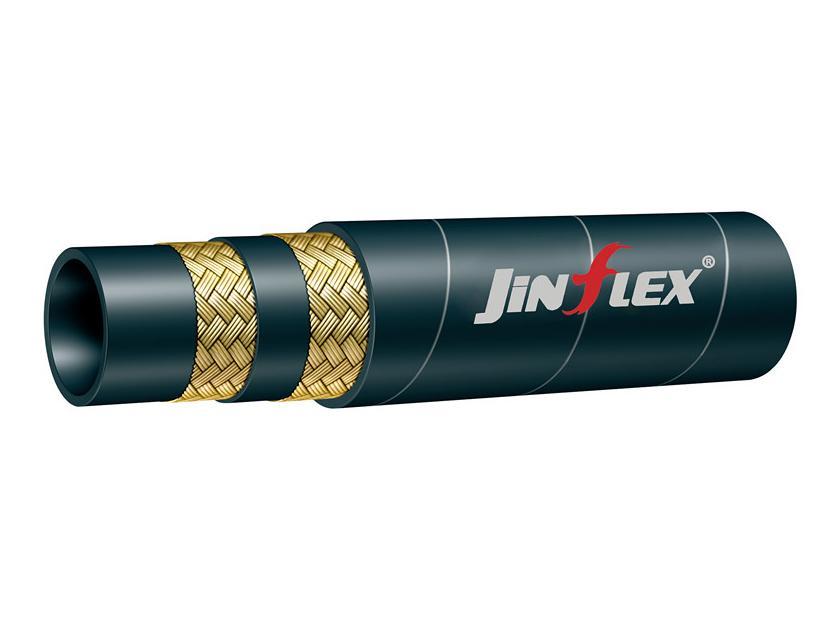

SAE 100R2AT
High pressure hydraulic oil lines used in construction, machine tool and agriculture application using petroleum or water based hydraulic fluids.
-
DIN EN853 2SN
High pressure hydraulic oil lines used in construction, machine tool and agriculture application using petroleum or water based hydraulic fluids.
-
DIN EN857 1SC
High pressure service with tight bends for petroleum and water based hydraulic fluids.
-
DIN EN857 2SC
High pressure service with tight bends for petroleum and water based hydraulic fluids
-
SAE 100R1A
Used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment etc.
-
DIN EN853 1ST
Used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment etc.
-
SAE 100R2A
High pressure hydraulic oil lines used in the hydraulic system of multifunctional mining machinery and engineering machinery which use petroleum or water based hydraulic fluids.
-
DIN EN853 2ST
High pressure hydraulic oil lines used in hydraulic system of multifuctional mining machinery and engineering machinery which use petroleum or water based hydraulic fluids.
-
SAE 100 R17
High pressure hydraulic applications and to replace 100R1 where higher pressure and a more flexible hose is required.
-
STEAM HOSE
To convey the saturated steam at specified steam pressure for use in steel mills, thermal panits, oil paint, fertilizer and heavy engineering industries.
-
Pressure Washer Hose
Hose suitable to for pressure washer, industrial cleaning system etc.
SAE 100R1AT
DIN EN853 1SN
SAE 100R2AT
DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100R1A
DIN EN853 1ST
SAE 100R2A
DIN EN853 2ST
SAE 100R17
STEAM HOSE
Pressure Washer Hose

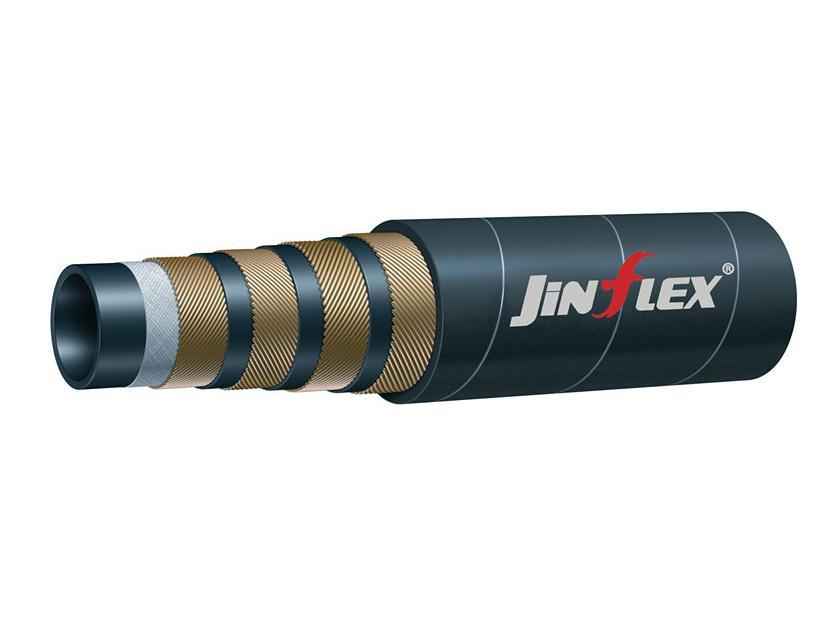

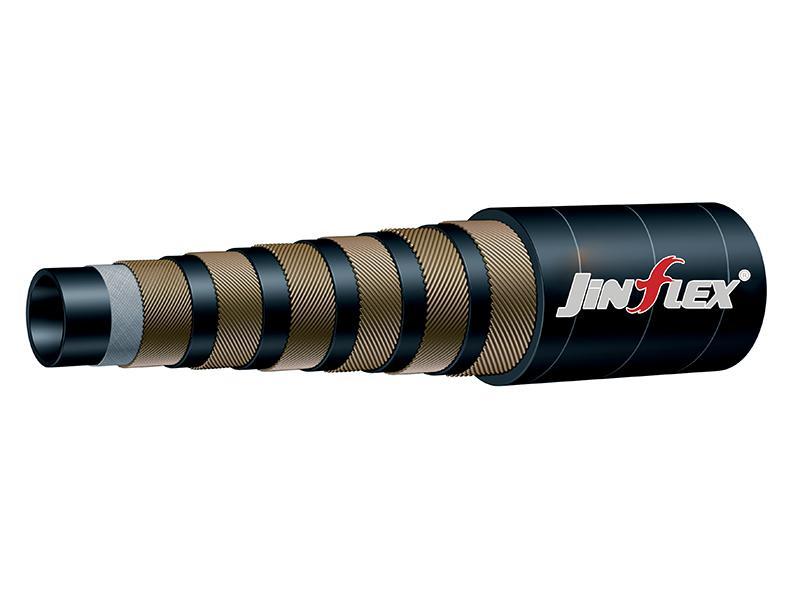

Wire Spiral Hydraulic Hose
-
DIN EN856/DIN20023 4SP
Very high pressure applications used for petroleum based hydraulic fluids.
-
DIN EN856/DIN20023 4SH
Very high pressure applications used for petroleum based hydraulic fluids.
-
SAE 100 R9
Suitable for passage of mineral and vegetable oils,aqueous emulsions,water,air and inert gases.
-
SAE 100 R12
Very high pressure applications used for petroleum based hydraulic fluids.
-
SAE 100 R13
Very high pressure applications subject to surge or flexing such as construction equipments, mining and the high performance industrial market.
-
SAE 100 R15
Very high pressure applications subject to surge or flexing such as construction equipments, mining and the high performance industrial market.
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R9
SAE 100 R12
SAE 100R13
SAE 100R15
Textile Braided Rubber Hose
-
SAE 100 R3
To deliver low pressure petroleum and water based hydraulic fluids such as mineral oil, glycol, lubricating oil, emulsion, hydricarbon.
-
SAE 100 R6
Hose range suitable to carry petroleum based hydraulic fluids etc.
-
Air/Water Hose
Suitable for water, air, or inert gas based delivery.
-
Fuel & Oil Hose
Widely suitable for the transportation of benzene, kerosene, diesel oil, gas, lubricating oil, and other mineral oil.
SAE 100R3
SAE 100R6
Air/Water Hose
Fuel & Oil Hose
Others
-
SAE100 R5
Oil and weather resistant synthetic rubber impregnated cotton braid.
-
SAE 100 R7
Automobile, engineering machinery. Althe, agricutural machines, mining, spurting the oil paint, Navigation & space flight, cooling and other hydraulic control system.
-
SAE 100 R8
Automobile, engineering machinery. Althe, agricutural machines, mining, spurting the oil paint, Navigation & space flight, cooling and other hydraulic control system.
-
SAE 100 R14
Fluid transfer devices and water processing system
SAE 100R5
SAE 100R7
SAE100R8
SAE100R14
Hydraulic Fitting
car wash fitting
flange fitting
male fitting
female fitting
ferrule

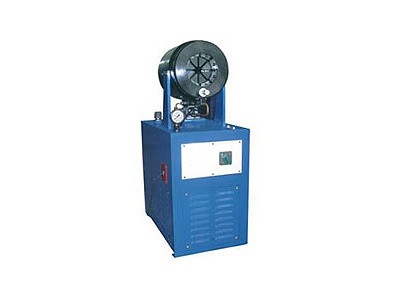

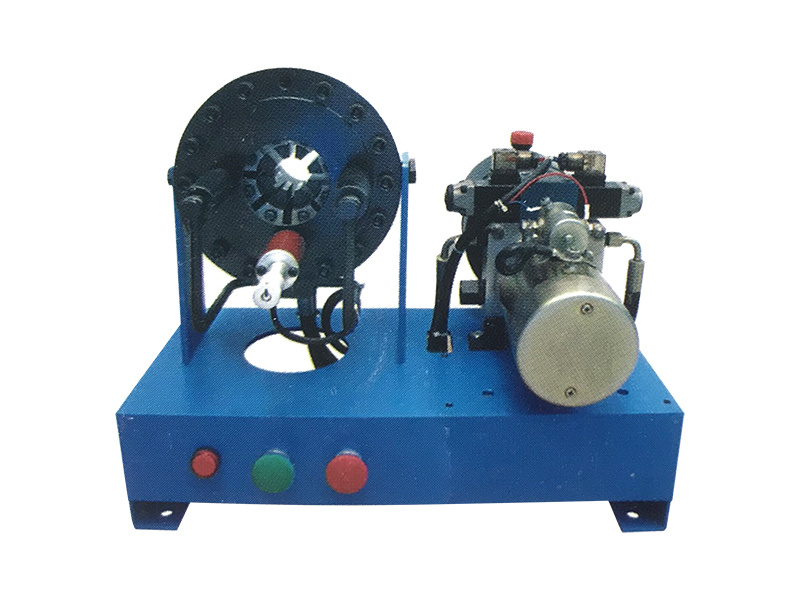

Crimping Machine
-
JTS51-Y Nut Crimper
Nut crimper is an ideal for nonstandard fittings which sizes from 4 to 51mm.
-
JTB51-D Hose Skiving Machine
Skiving the hose when taking it out, in order to protect the hoses smooth and avoid any damage of the internal layer.
-
JQQ51-Y Hose Cutting Machine
Stronger power, can cut big hose with 4 wire spirals.
-
JQ51-Y Hose Cutting Machine
The hose cutting section is smooth and clean.
-
JTK60 Electric Crimper
Ideal for automatic air-conditioning pipe, particular for double elbow fittings and complicated fittings.
-

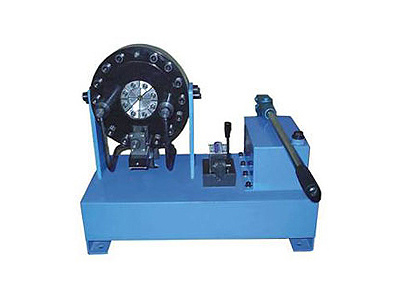

JT160 Manual Crimper
Compact, light, operated by hand-pump, Mobile. Available be used for field work.
-
JT600 Electric Crimper
Automatic or foot pedal opening and closing control.
-
JTL500 The Slim Electric Crimper
High production capacity thanks to adjustable opening diameters and holding times.
-
JT350 Electric Crimper
It is designed for large maintenance activities, particularly for heavy fittings
-
JT300 Electric Crimper
The oil cylinder will retract automatically after crimping sizes are reached.
-
JT200 Electric Crimper
Automatic or foot pedal opening and closing control.
-
JTD160 Electric Crimper
Compact. Light .Mobile. Precision.Durability. Simple to operate.
JTS51-Y Nut Crimper
JTB51-D Hose Skiving Machine
JQQ51-Y Hose Cutting Machine
JQ51-Y Hose Cutting Machine
JTK60 Electric Crimper
JT160 Manual Crimper
JT600 Electric Crimper
JTL500 The Slim Electric Crimper
JT350 Electric Crimper
JT300 Electric Crimper
JT200 Electric Crimper
JTD160 Electric Crimper

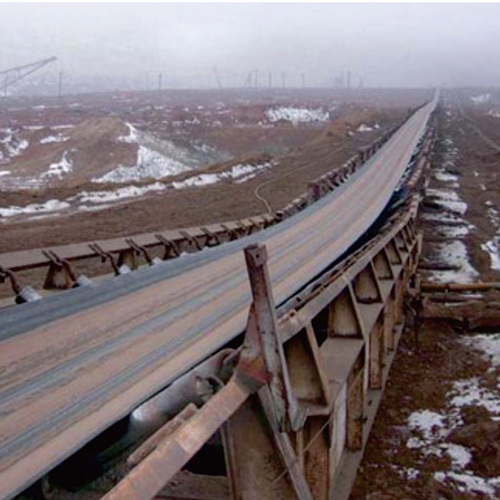

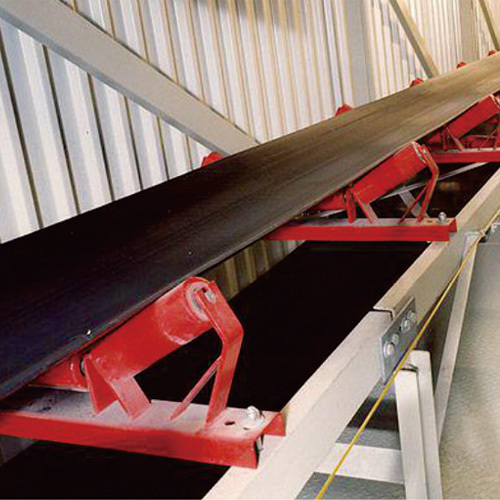

Rubber Conveyor Belt
-
Flame Resistant Conveyor Belt
Flame Resistant Conveyor Belt is primarily required for internal transportation in tunnels and mines where safety is of paramount importance.
-
Cold Resistance Conveyor Belt
The product selects cotton canvas, nylon canvas or EP canvas as carcass.
-
Oil Resistant Conveyor Belt
The oil resistant synthetic rubber enable the belt to convey oil contaminated or treated materials since this kind of rubber has good resistant to the damage caused by oil.
-
Acid & Alkali Resistant Conveyor Belt
Acid & Alkali Resistant Conveyor Belt is designed to convey corrosive or acid & alkali material since it can reduce the corrosion of rubber cover so as to extend the belt life.
-

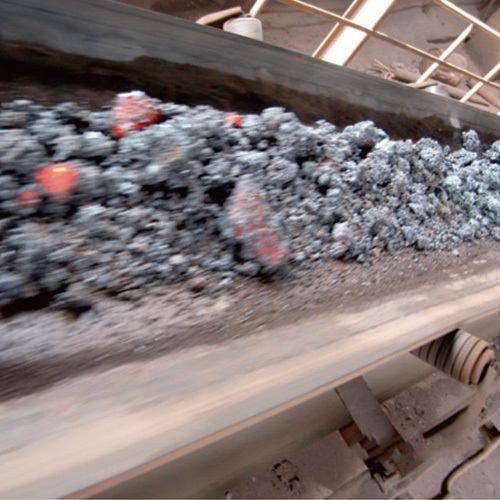

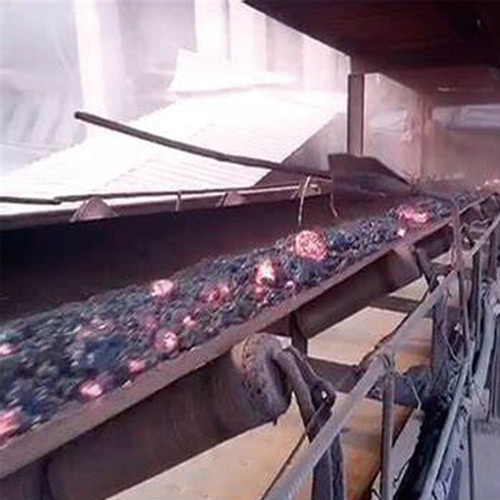

Heat Resistant Conveyor Belt
In general, It is economical to adopt the heat resistant conveyor belt in case the temperature of the materials being transported exceeds 60 ℃.
-
Bucket Elevator Conveyor belt
Bucket Elevator Conveyor Belt is designed for application in all areas of the belted-type elevators.
-

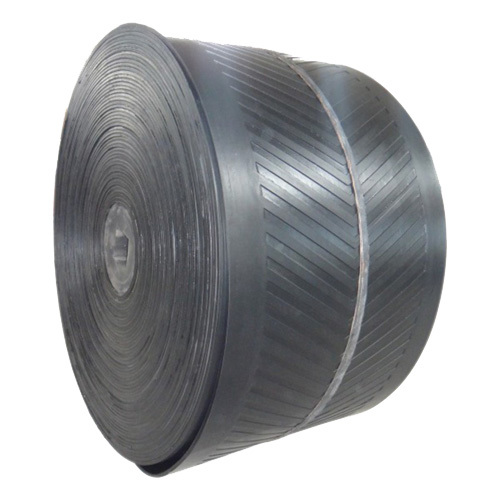

Chevron Conveyor Belt
Chevron Conveyor Belt is the good choice to conveyor wet or loose materials or bags up steep inclines. For this purpose, we have developed high performance and high quality chevron conveyor belts.
-

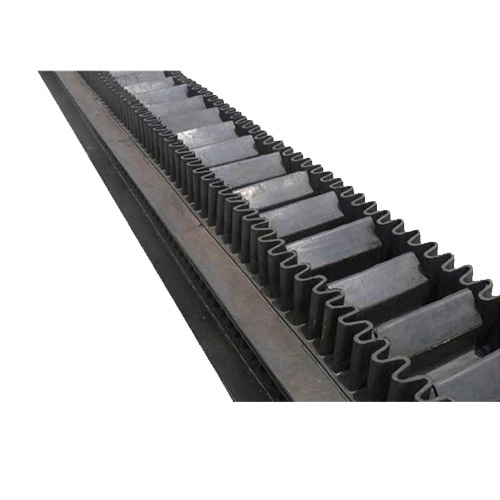

Corrugated Sidewall Conveyor Belt
Corrugated Sidewall Conveyor Belt is suitable for steep angle conveying of general and bulk goods.
-

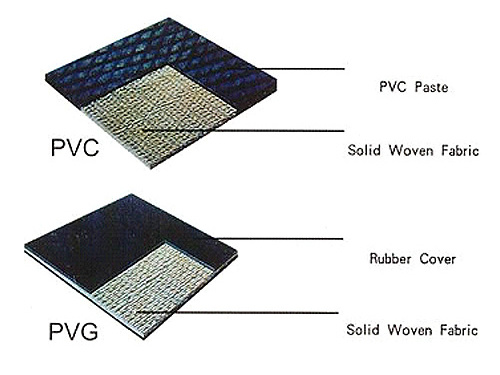

PVC Solid Woven Conveyor Belt
Used for conveying materials in coal mine and other occasions required fire-resistant and antistatic.
-
PVG Solid Woven Conveyor Belt
Used for conveying materials in coal mine and other occasion require fire resistant and antistatic.
-

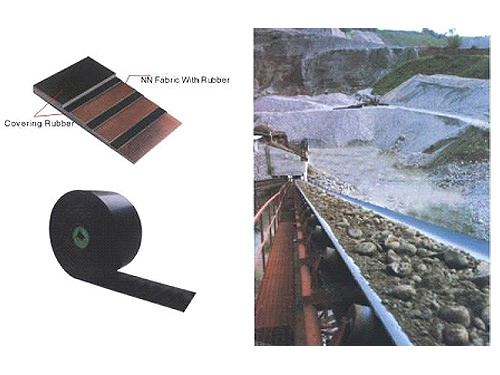

Multi-ply Fabric Conveyor Belt
Used in coal, ore, port, electric power, metallurgy, chemical, food and building industries, suitable for long distance and heavy load transportation of materials.
-

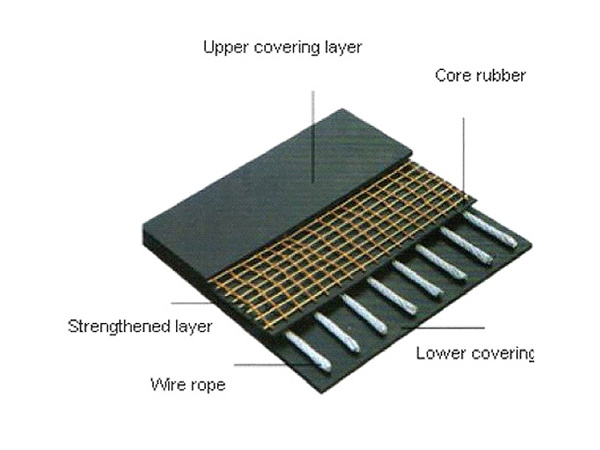

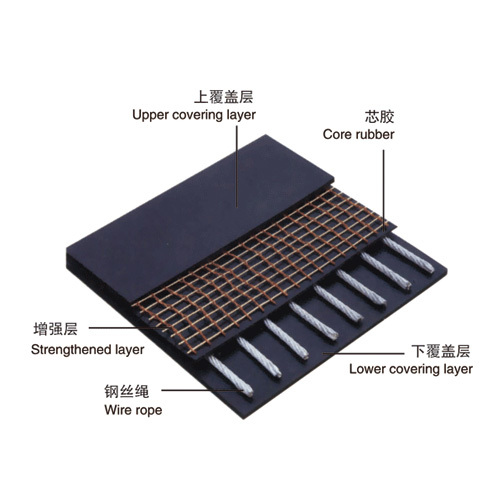

Steel Cord Conveyor Belt
Used for conveying materials in such industries as coal, ore, port, metallurgy, electric power and chemical etc.

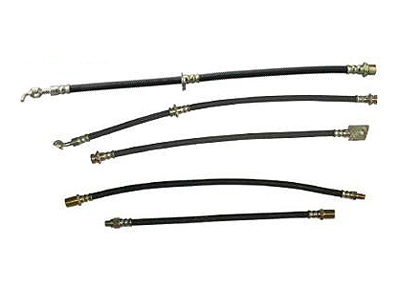

Hydraulic hose assembly

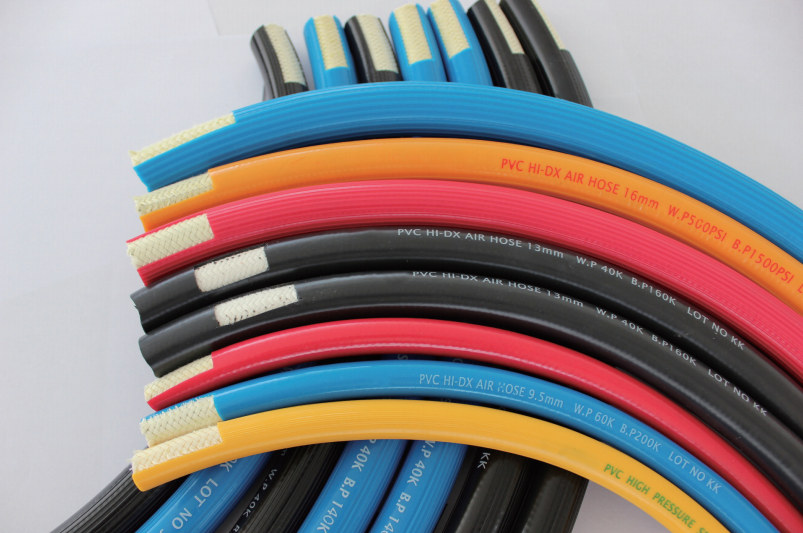

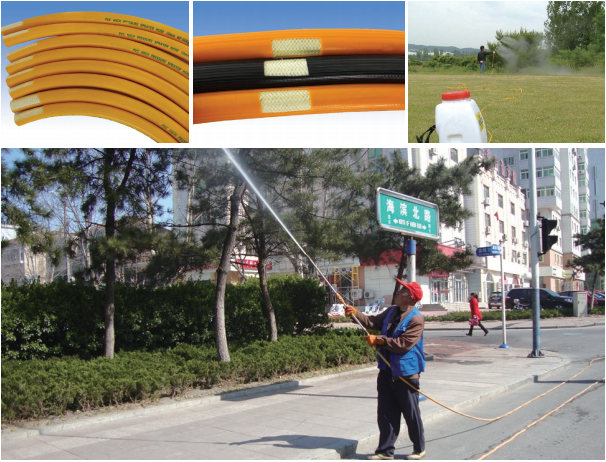

Textile Braided PVC Hose

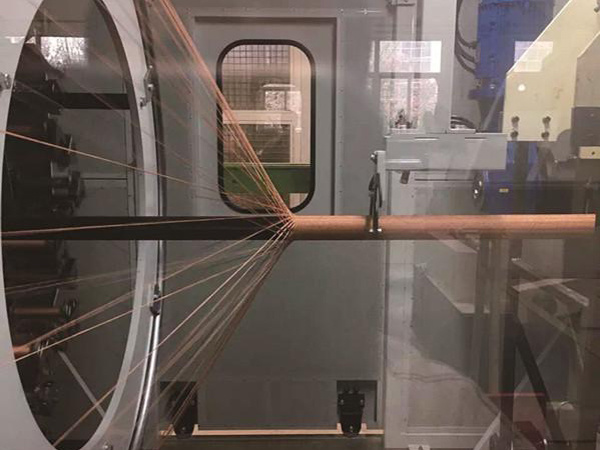

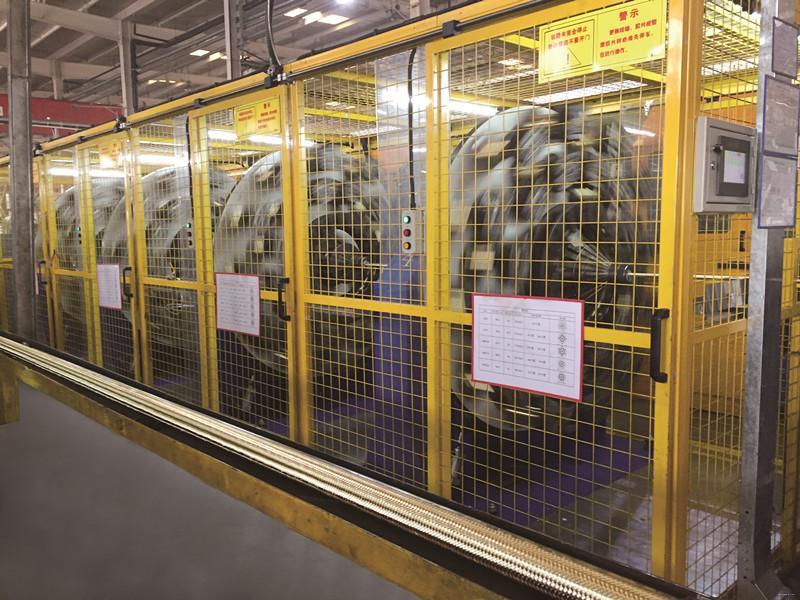

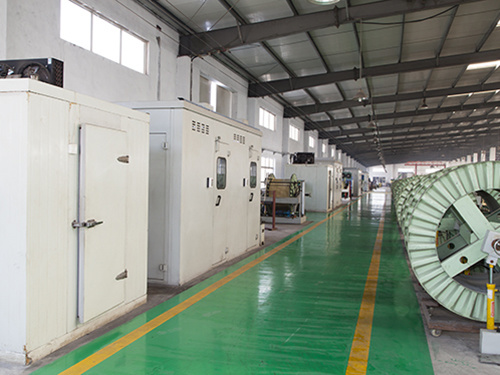

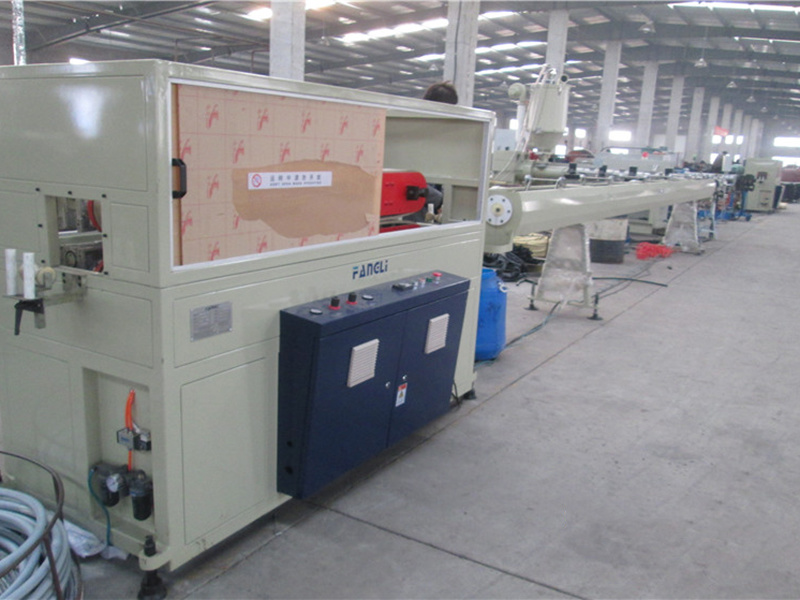

Workshop
